FLEXIBLE CONTROL CABLE

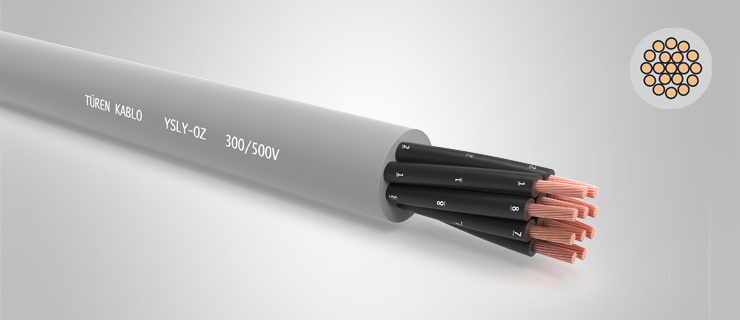

YSLY-OZ Flexible Harmonised Control Cable (300/500 V)
YSLY-OZ flexible control cables are used as control cables in office machines, electronic control systems, heating and ventilation systems, power plants, and engineering projects for display and measurement purposes.
Flexible Control Cable Specifications
Type:
YSLY-OZ
Standards:
TS HD. 21.13 S1, VDE 0245
Cable Structure:
Conductor: Fine Multi-strand Electrolytic Annealed Copper Conductor (IEC 60228, VDE 0295, Class 5)
Insulation: PVC (TI2)
Sheath: PVC (TM2)
Technical Data:
- Maximum Operating Temperature: +70 ºC
- Maximum Short-Circuit Temperature: +160 ºC (max 5 sec)
Rated Voltage;
- YSLY-OZ: 300/500 V
- Test Voltage: 2 kV
- Flame Test: IEC 60332-1-2
Please contact our sales team to receive a price quote for YSLY-OZ PVC insulated harmonised flexible control cable.
