SINGLE-CORE FLEXIBLE CABLE

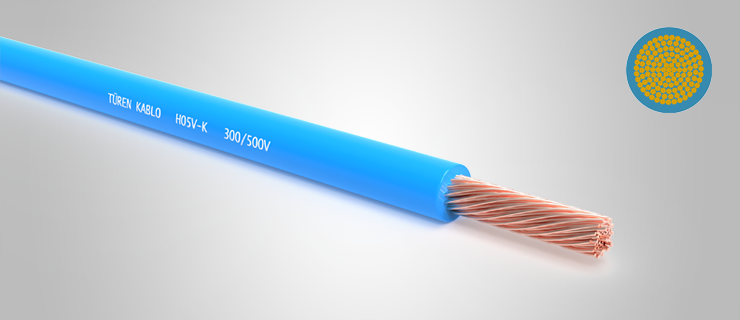

H05V-K Single Core Flexible Cable (300/500 V)
Single-core flexible harmonized cables with Cu/PVC insulation are used in connections for mobile devices, distribution panels, dry or closed spaces, on or under plaster, also can be laid in conduit.

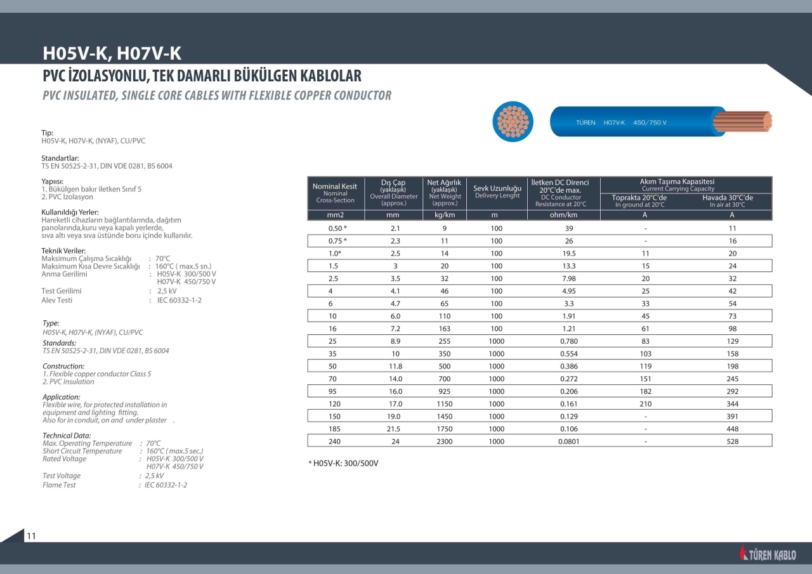

Single-Core Flexible Cable Specifications
Type:
H05V-K, H07V-K
Standards:
TS EN 50525-2-31, DIN VDE 0281, BS 6004
Cable Structure:
Conductor: Fine Multi-strand Electrolytic Annealed Copper Conductor (IEC 60228, VDE 0295, Class 5)
Insulation: PVC (TI1)
Technical Data:
- Maximum Operating Temperature: +70 ºC
- Maximum Short Circuit Temperature: +160 ºC (max 5 sec)
Rated Voltage;
- H05V-K: 300/500 V
- H07V-K: 450/750 V
- Test Voltage: 2.5 kV
- Flame Test: IEC 60332-1-2
Please contact our sales team to receive a price quote for H05V-K single-core Cu/PVC insulated flexible cables.
