SUBMERSIBLE PUMP CABLE

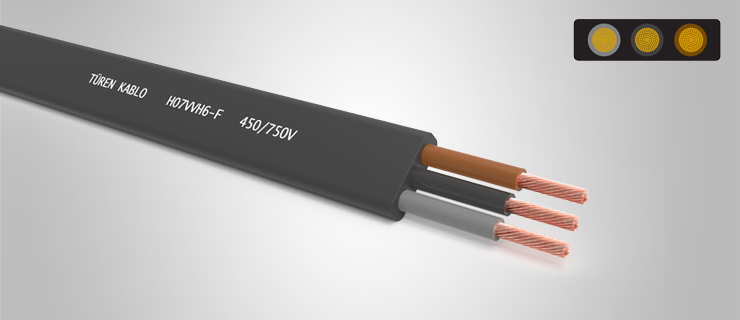

Flat Cable for H07VVH6-F Harmonised Submersible Pumps (450/750 V)
H07VVH6-F harmonised cable is used in deep well submersible pumps, as well as in control and monitoring cables in moving systems such as cranes, escalators, and conveyor belt systems.

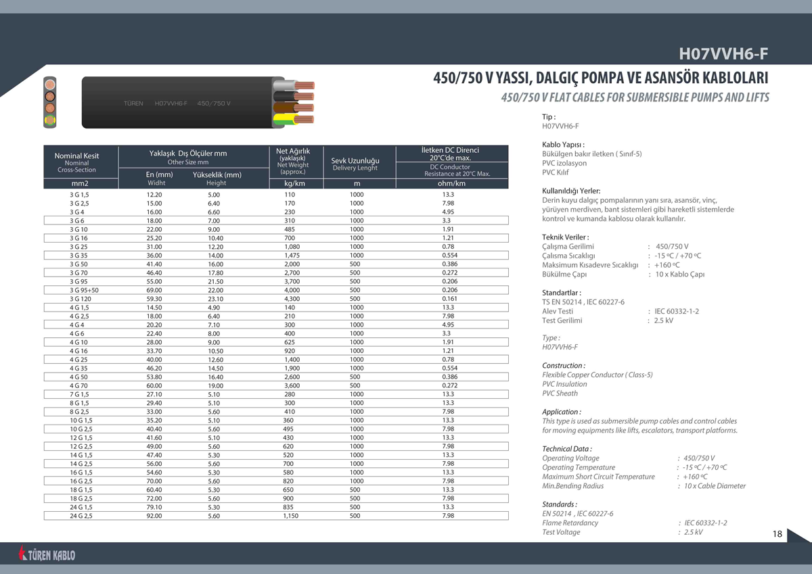

Submersible Pump Cable Specifications
Type:
H07VVH6-F
Standards:
TS EN 50214, IEC 60227-6
Cable Structure:
Conductor: Fine Multi-strand Electrolytic Annealed Copper Conductor (IEC 60228, VDE 0295, Class 5)
Insulation: PVC (TI2)
Sheath: PVC (TM2)
Technical Data:
- Maximum Operating Temperature: +70 ºC
- Maximum Short-Circuit Temperature: +160 ºC (max 5 sec)
Rated Voltage;
- H07VVH6-F: 450/750 V
- Test Voltage: 2.5 kV
- Flame Test: IEC 60332-1-2
Please contact our sales team to receive a price quote for H07VVH6-F PVC insulated flat submersible pump cables.
