HEAT RESISTANT FLEXIBLE CABLE

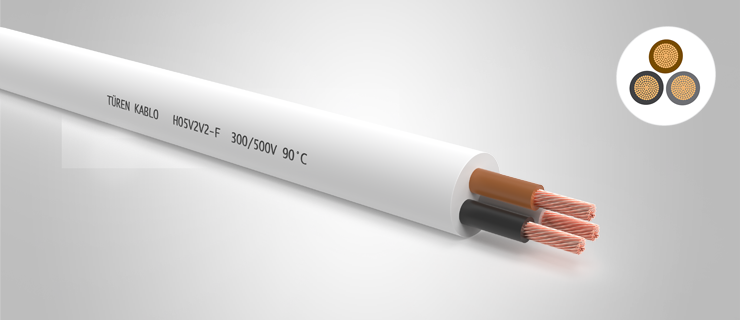

H05V2V2-F PVC Double Insulated Harmonised Flexible Cable (300/500 V)
In household appliances, they are used to limit the formation and spread of fire and smoke in areas with low mechanical stress, humid environments, and situations requiring high heat resistance.
PVC Double Insulated Heat Resistant Flexible Cable Specifications
Type:
H05V2V2-F
Standards:
TS EN 50525-2-11
Cable Structure:
Conductor: Fine Multi-strand Electrolytic Annealed Copper Conductor (IEC 60228, VDE 0295, Class 5)
Insulation: High temperature resistant polyvinyl chloride (HR-PVC) 90°C
Sheath: High temperature resistant polyvinyl chloride (HR-PVC) 90°C
Technical Data:
- Maximum Operating Temperature: +90 ºC
- Maximum Short Circuit Temperature: +250 ºC (max x sec)
Rated Voltage;
- H05V2V2-F: 300/500 V
- Test Voltage: 2000 V
- Flame Test: IEC 60332-1-2
Please contact our sales team to receive a price quote for H05V2V2-F heat-resistant PVC insulated flexible harmonised cables.
