HEAT RESISTANT FLEXIBLE CABLE

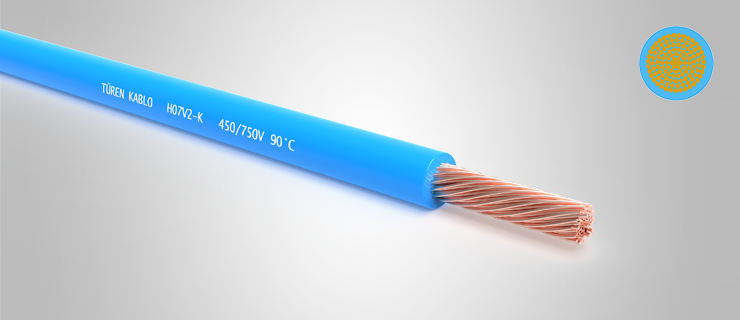

H07V2-K 90°C Heat Resistant Harmonised and Flexible Cable (450/750 V)
Harmonised flexible cable with Cu/PVC insulation, resistant to high temperatures up to 90°C, suitable for use in distribution and instrumentation panels, control mechanisms, and control panels.
Heat-Resistant Flexible Cable Features
Type:
H07V2-K
Standards:
BS 6231, HD21.7 S2, EN 50525-2-31
Cable Structure:
Conductor: Multi-stranded electrolytic annealed copper conductor (IEC 60228, VDE 0295, Class 5)
Insulation: PVC 90°C (TI3)
Technical Data:
- Maximum Operating Temperature: +90°C (105°C 15,000 hours)
- Maximum Short Circuit Temperature: +160 ºC (max 5 sec)
Rated Voltage:
- BS6231: 600/1000 V
- HD 21.7 S2: 450/750 V
- Test Voltage: 2.5 kV
- Flame Test: IEC 60332-1-2
Please contact our sales team to receive a price quote for H07V2-K 90°C heat-resistant PVC insulated harmonized and flexible panel cables.
