HEAT RESISTANT FLEXIBLE CABLE

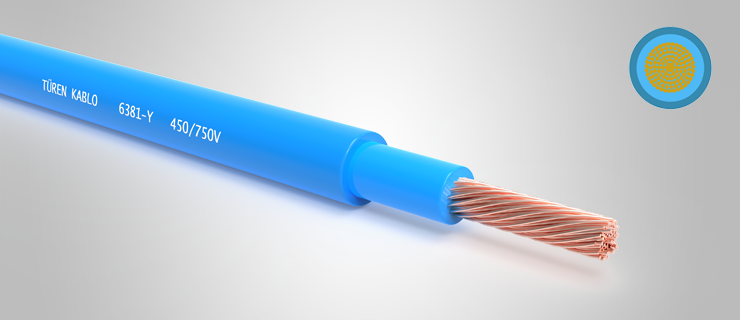

6381-Y Cu/PVC Double Insulated Flexible Cable (450/750 V)
6381-Y Harmonised cables are used in applications requiring flexibility in mobile equipment such as submersible motors, cranes, and elevators, as well as in civil engineering applications, fixed installations, conduits, and electrical panels.
PVC Double Insulated Flexible Cable Specifications
Type:
6381-Y
Standards:
BS 6004, IEC 60502-1
Cable Structure:
Conductor: Fine Multi-strand Electrolytic Annealed Copper Conductor (IEC 60228, VDE 0295, Class 5)
Insulation: PVC
Sheath: PVC
Technical Data:
- Maximum Operating Temperature: -15°C / +70°C
- Maximum Short Circuit Temperature: 160°C
Rated Voltage;
- 6381-Y: 450/750 V
- Test Voltage: 2.5 kV – 3.5 kV
- Flame Test: IEC 60332-1-2
Please contact our sales team to receive a price quote for the 6381-Y double PVC insulated harmonised flexible cable.
