FLEXIBLE FLAT PVC CABLE

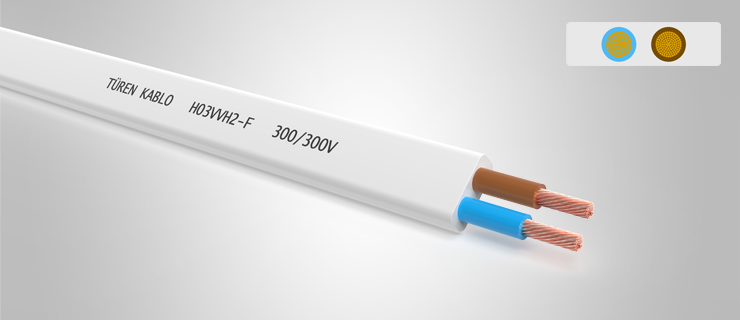

H03VVH2-F Flexible Flat PVC Cable (300/300 V)
H03VVH2-F harmonised cable is used in household appliances; portable lighting and fixtures, in areas with low mechanical stress, in humid environments, and to limit the formation and spread of fire and smoke.
Flexible Flat PVC Cable Specifications
Type:
H03VVH2-F
Standards:
TS EN 50525-2-11
Cable Structure:
Conductor: Fine Multi-strand Electrolytic Annealed Copper Conductor (IEC 60228, VDE 0295, Class 5)
Insulation: PVC
Sheath: PVC
Technical Data:
- Maximum Operating Temperature: +70°C
- Maximum Short Circuit Temperature: 160°C
Rated Voltage;
- H03VVH2-F: 300/300 V
- Test Voltage: 2000 V
- Flame Test: EN 60332-1-2
Please contact our sales team to receive a price quote for H03VVH2-F PVC insulated harmonised flat flexible cables.
