FLEXIBLE REMOTE CONTROL CABLE

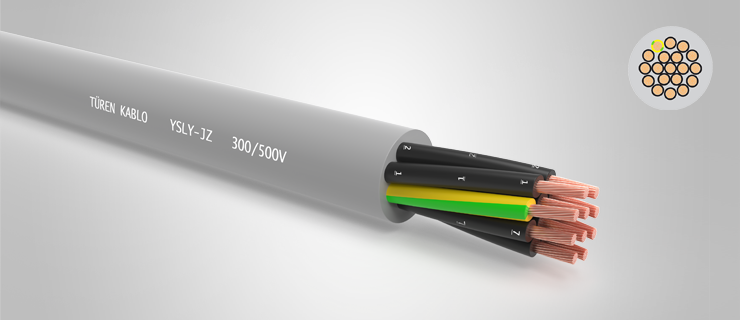

YSLY-JZ Flexible Control Cable (300/500 V)
YSLY-JZ flexible harmonised control cables are used as control cables in office machines, electronic control systems, heating and ventilation systems, power plants, and engineering projects for display and measurement purposes.

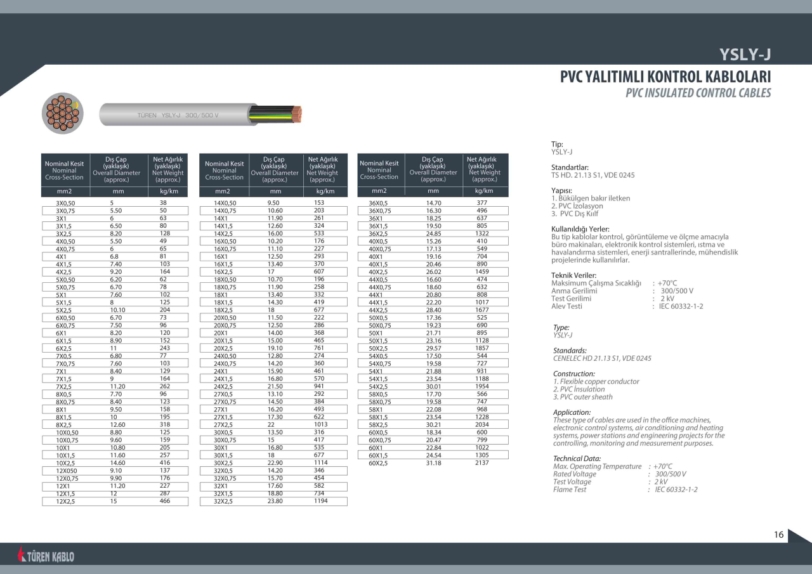

PVC Flexible Control Cable Specifications
Type:
YSLY-JZ
Standards:
TS HD. 21.13 S1, VDE 0245
Cable Structure:
Conductor: Fine Multi-strand Electrolytic Annealed Copper Conductor (IEC 60228, VDE 0295, Class 5)
Insulation: PVC (TI2)
Sheath: PVC (TM2)
Technical Data:
- Maximum Operating Temperature: +70 ºC
- Maximum Short-Circuit Temperature: +160 ºC (max 5 sec)
Rated Voltage;
- YSLY-JZ: 300/500 V
- Test Voltage: 2 kV
- Flame Test: IEC 60332-1-2
Please contact our sales team to receive a price quote for the YSLY-JZ PVC insulated harmonised flexible control cable.
