FLAT ELEVATOR CABLE

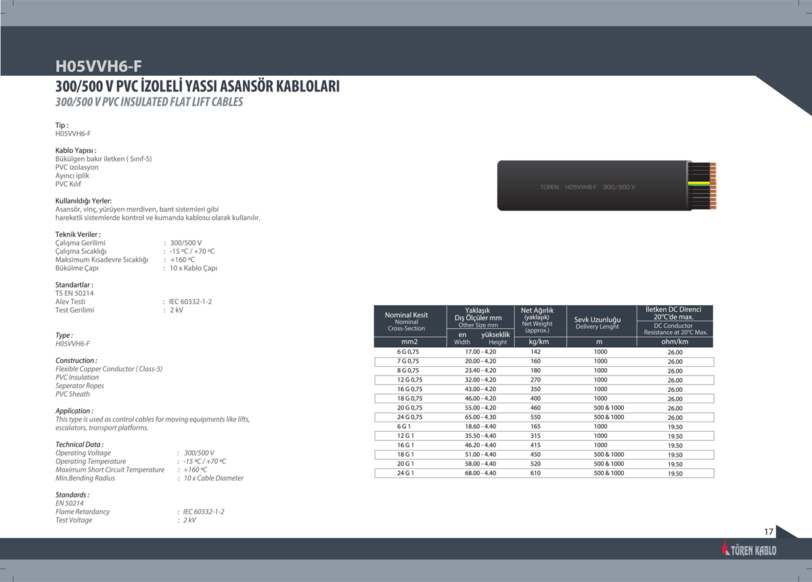

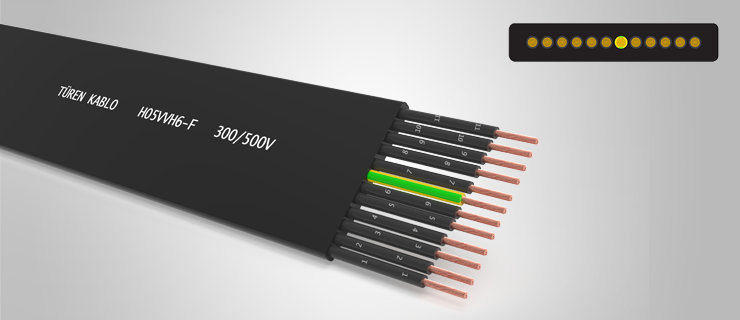

H05VVH6-F Harmonised Flat Elevator Cable (300/500 V)
H05VVH6-F harmonised cable is used as a control and monitoring cable in moving systems such as elevators, cranes, escalators, and conveyor belt systems.
Flat Elevator Cable Specifications
Type:
H05VVH6-F
Standards:
TS EN 50214
Cable Structure:
Conductor: Fine Multi-strand Electrolytic Annealed Copper Conductor (IEC 60228, VDE 0295, Class 5)
Insulation: PVC (TI2)
Sheath: PVC (TM2)
Technical Data:
- Maximum Operating Temperature: +70 ºC
- Maximum Short Circuit Temperature: +160 ºC (max 5 sec)
Rated Voltage;
- H05VVH6-F: 300/500 V
- Test Voltage: 2 kV
- Flame Test: IEC 60332-1-2
Please contact our sales team to receive a price quote for the H05VVH6-F PVC insulated harmonised flat elevator control cable.
