DOUBLE INSULATED FLEXIBLE CABLE
H03VV-F PVC Double Insulated Harmonised Flexible Cable (300/300 V)
H03VV-F PVC double-insulated flexible harmonised cable is used in household appliances in closed and dry places with low mechanical stress, and in steamy and humid environments.

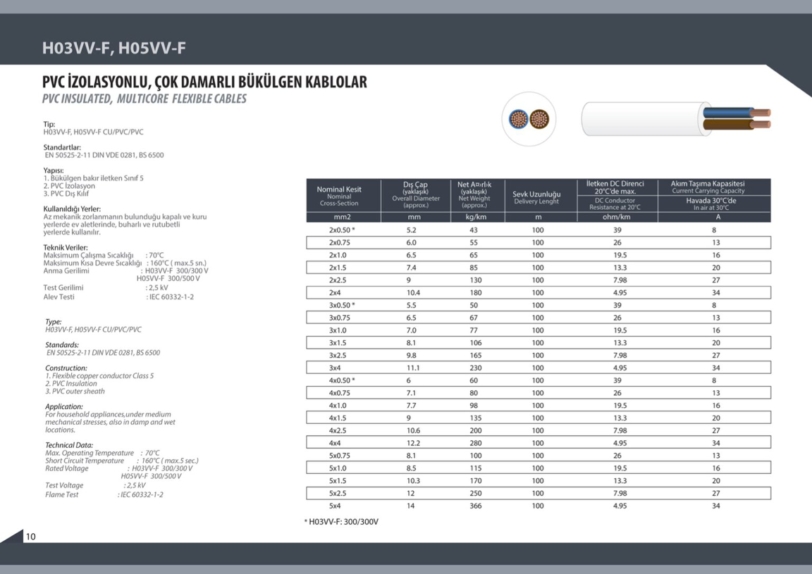

PVC Double Insulated Flexible Cable Specifications
Type:
H03VV-F, H05VV-F
Standards:
EN 50525-2-11, DIN VDE 0281, BS 6500

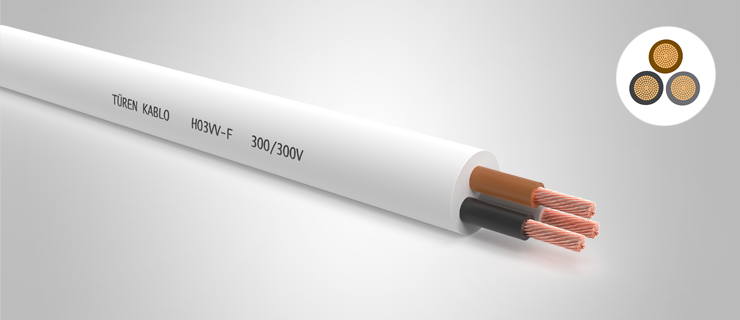

Cable Structure:
Conductor: Fine Multi-strand Electrolytic Annealed Copper Conductor (IEC 60228, VDE 0295, Class 5)
Insulation: PVC (TI2)
Sheath: PVC (TM2)
Technical Data:
- Maximum Operating Temperature: +70 ºC
- Maximum Short Circuit Temperature: +160 ºC (max 5 sec)
Rated Voltage;
- H03VV-F: 300/300 V
- H05VV-F: 300/500 V
- Test Voltage: 2.5 kV
- Flame Test: IEC 60332-1-2
Please contact our sales team to receive a price quote for H03VV-F double PVC insulated multi-core flexible TTR cables.
