DOUBLE INSULATED FLEXIBLE CABLE

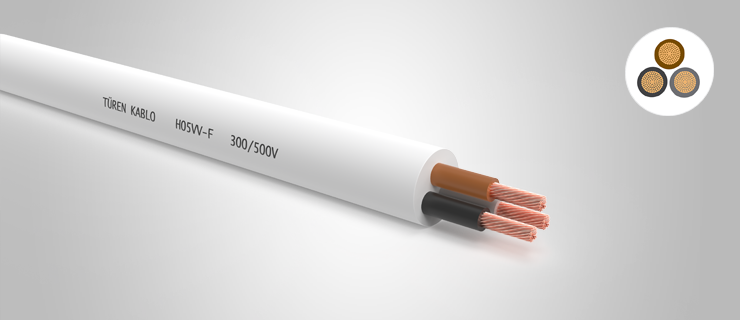

H05VV-F PVC Double Insulated TTR Harmonised Flexible Cable (300/500 V)
H05VV-F PVC double insulated TTR harmonised flexible cable is used in household appliances in closed and dry places with low mechanical stress, and in steamy and humid environments.

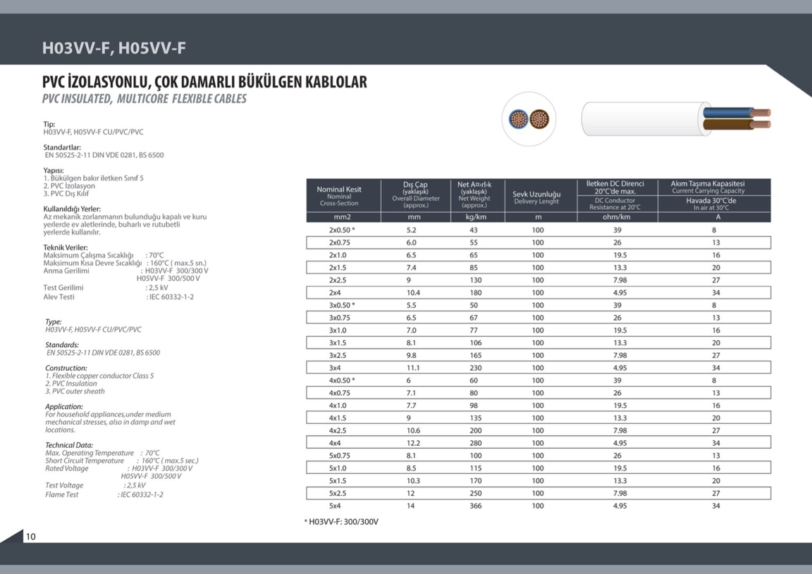

PVC Double Insulated Flexible Cable Specifications
Type:
H03VV-F, H05VV-F
Standards:
EN 50525-2-11, DIN VDE 0281, BS 6500
Cable Structure:
Conductor: Fine Multi-strand Electrolytic Annealed Copper Conductor (IEC 60228, VDE 0295, Class 5)
Insulation: PVC (TI2)
Sheath: PVC (TM2)
Technical Data:
- Maximum Operating Temperature: +70 ºC
- Maximum Short Circuit Temperature: +160 ºC (max 5 sec)
Rated Voltage;
- H03VV-F: 300/300 V
- H05VV-F: 300/500 V
- Test Voltage: 2.5 kV
- Flame Test: IEC 60332-1-2
Please contact our sales team to receive a price quote for the H05VV-F double PVC insulated multi-core, harmonised flexible TTR cable.
