SUBMERSIBLE PUMP CABLE

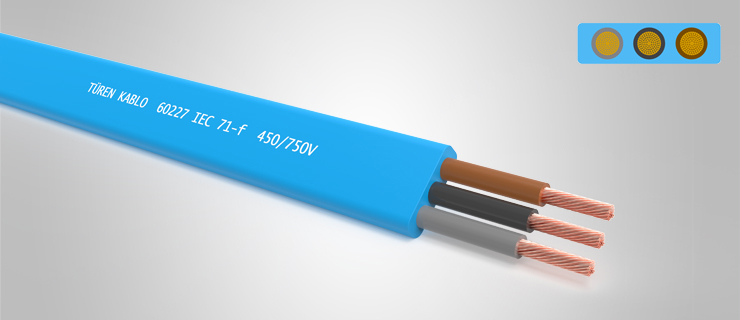

60227 IEC 71-f Deep Well Submersible Flat Motor Cable (450/750 V)
60227 IEC 71-f cable is used as a control and monitoring cable in moving systems such as elevators, cranes, escalators, and conveyor belt systems, as well as in submersible pumps. It can also be produced with NBR (Nitrile Butadiene Rubber) insulation.
Flat Submersible Pump Cable Specifications
Type:
60227 IEC 71-f
Standards:
IEC 60227-6
Cable Structure:
Conductor: Fine Multi-strand Electrolytic Annealed Copper Conductor (IEC 60228, VDE 0295, Class 5)
Insulation: PVC
Sheath: PVC
Technical Data:
- Maximum Operating Temperature: +70°C
- Maximum Short Circuit Temperature: 160°C
Rated Voltage;
- 60227 IEC 71-f: 450/750 V
- Test Voltage: 2.5 kV
- Flame Test: IEC 60332-1-2
Please contact our sales team to receive a price quote for 60227 IEC 71-f PVC insulated flat deep well submersible pump cables.
