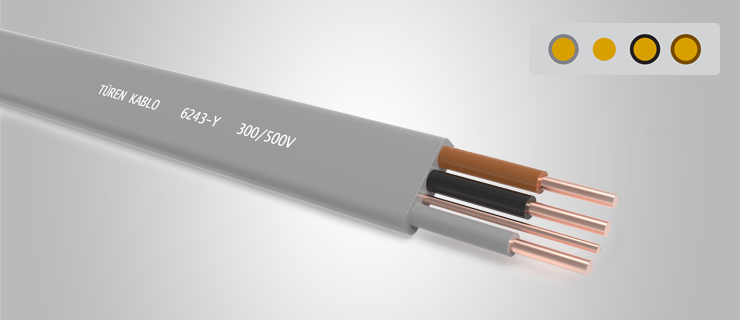

FLAT-TWIN INSTALLATION CABLE
6243-Y Flat-Twin Installation Cable (300/500 V)
6243-Y flat-twin grounding wire installation cable is used in dry or damp environments, factories, workplaces, and warehouses. It is not intended for underground installation. It is used in fixed installations both concealed and surface-mounted.
Flat-Twin Installation Cable Specifications
Type:
6243-Y
Standards:
BS 6004
Cable Structure:
Conductor: Single or Multi-strand Electrolytic Annealed Copper Conductor (IEC 60228, VDE 0295, Class 1 or Class 2)
Insulation: PVC (TI1)
Sheath: PVC (TM1)
Technical Data:
- Maximum Operating Temperature: +70 ºC
- Maximum Short Circuit Temperature: +160 ºC (max 5 sec)
Rated Voltage;
- 6243-Y: 300/500 V
- Test Voltage: 2 kV
- Flame Test: IEC 60332-1-2
Please contact our sales team to receive a price quote for 6242-Y PVC insulated flat flexible cables.
