PVC INSULATED COPPER WIRE

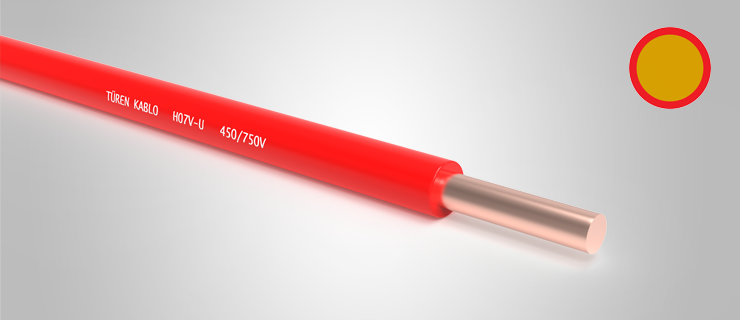

H07V-U Harmonised Rigid Installation Cable (450/750 V)
H07V-U harmonised cable is used in fixed installations, distribution panels, dry or enclosed spaces, under or above plaster, and in conduits.

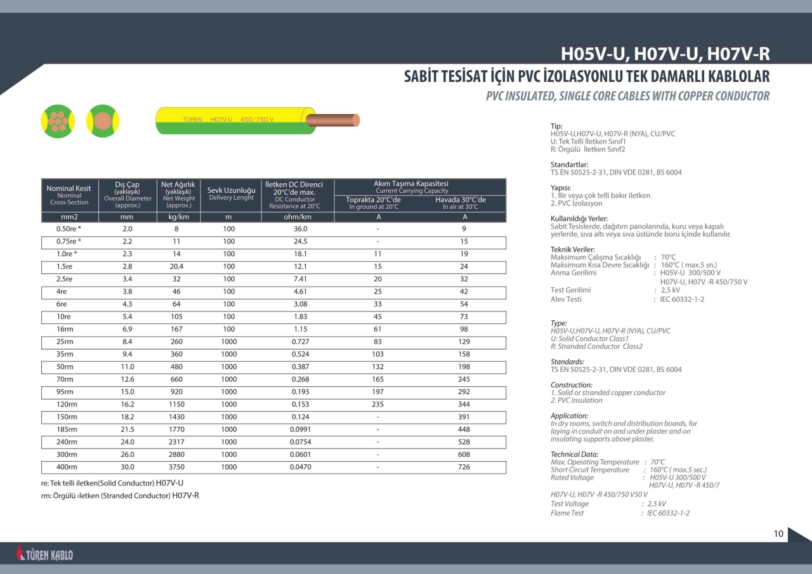

Rigid Installation Cable Specifications
Type:
H07V-U
Standards:
TS EN 50525-2-31, DIN VDE 0281, BS 6004
Cable Structure:
Conductor: Single or Multi-strand Electrolytic Annealed Copper Conductor (IEC 60228, VDE0295, Class 1)
Insulation: PVC (TI1)
Technical Data:
- Maximum Operating Temperature: +70 ºC
- Maximum Short Circuit Temperature: +160 ºC (max 5 sec)
Rated Voltage;
- H07V-U: 450/750 V
- Test Voltage: 2.5 kV
- Flame Test: IEC 60332-1-2
Please contact our sales team to receive a price quote for H07V-U PVC insulated harmonised installation cables.
