CAPOTEN CABLE

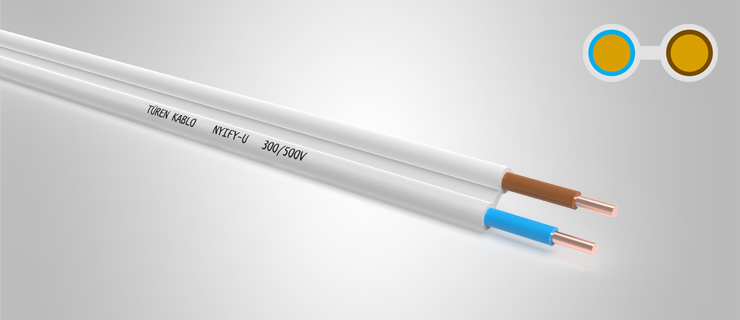

NYIFY-U Capoten Cable (300/500 V)
NYIFY-U Capoten Cable is used in dry or damp environments, factory workplaces, and warehouses. It is not laid underground. It is used in fixed installations under and above plaster.
Capoten Installation Cable Specifications
Type:
NYIFY-U, Capoten
Standards:
TS 9758, VDE 0250-201
Cable Structure:
Conductor: Single or Multi-strand Electrolytic Annealed Copper Conductor (IEC 60228, VDE 0295, Class 1)
Insulation: PVC (TI1)
Sheath: PVC (TM1)
Technical Data:
- Maximum Operating Temperature: +70 ºC
- Maximum Short Circuit Temperature: +160 ºC (max 5 sec)
Rated Voltage;
- NYIFY-U: 300/500 V
- Test Voltage: 2 kV
- Flame Test: IEC 60332-1-2
Please contact our sales team to receive a price quote for NYIFY-U PVC insulated flat flexible cables.
