FLAT-TWIN INSTALLATION CABLE

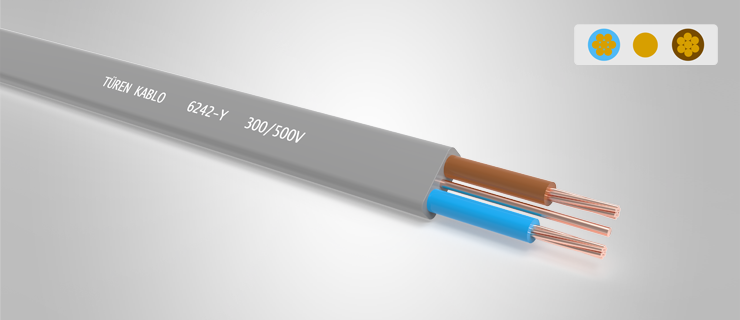

6242-Y Flat-Twin Cable (300/500 V)
6242-Y flat-twin cable is used in dry or damp environments, factories, workplaces, and warehouses. It is not intended for underground installation. It is used in fixed installations both concealed and surface-mounted.
Flat-Twin Cable Specifications
Type:
6242-Y
Standards:
BS 6004
Cable Structure:
Conductor: Single or Multi-strand Electrolytic Annealed Copper Conductor (IEC 60228, VDE 0295, Class 1 or Class 2)
Insulation: PVC (TI1)
Sheath: PVC (TM1)
Technical Data:
- Maximum Operating Temperature: +70 ºC
- Maximum Short Circuit Temperature: +160 ºC (max 5 sec)
Rated Voltage;
- 6242-Y: 300/500 V
- Test Voltage: 2 kV
- Flame Test: IEC 60332-1-2
Please contact our sales team to receive a price quote for 6242-Y PVC insulated flat flexible cables.
