HEAT-RESISTANT INSTALLATION CABLE

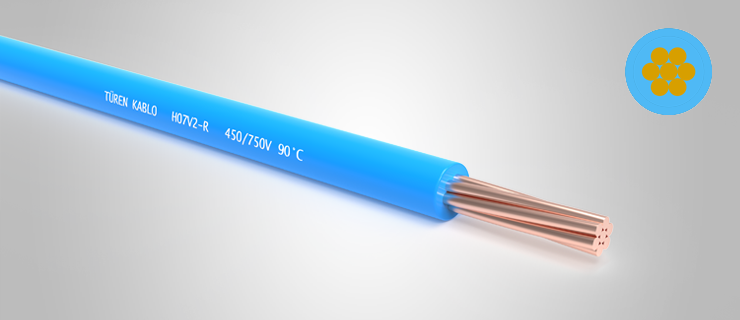

H07V2-R Heat Resistant Harmonised Copper Conductor Stranded Installation Cable (450/750 V)
H07V2-R Harmonised installation cable is used in electrical panels, fixed installations, household appliances, enclosed spaces, and all types of civil engineering applications, both flush and surface-mounted, under high operating temperature conditions (+90°C).
Copper Conductor Cable Specifications
Type:
H07V2-R
Standards:
EN 50525-2-31
Cable Structure:
Conductor: Electrolytic Annealed Rigid or Stranded Copper Conductor (IEC 60228, VDE 0295, Class 2)
Insulation: High temperature resistant polyvinyl chloride HR-PVC 90°C (TI 3 EN50353-3)
Technical Data:
- Maximum Operating Temperature: 90°C
- Maximum Short Circuit Temperature: 160°C
Rated Voltage;
- H07V2-R: 450/750 V
- Test Voltage: 2 - 2.5 kV
- Flame Test: IEC 60332-1
Please contact our sales team to receive a price quote for H07V2-R PVC insulated harmonised installation cables.
