INSTALLATION CABLE

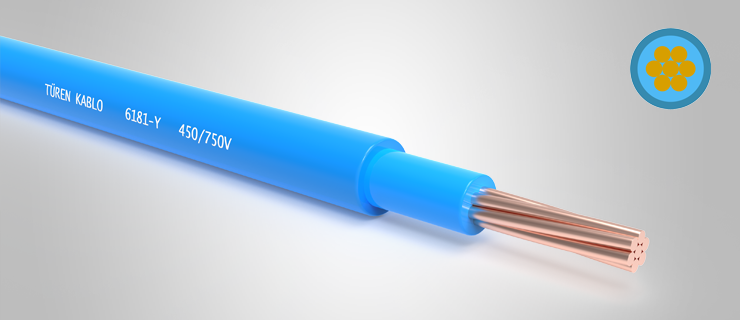

6181-Y Double Insulated Installation Cable (450/750 V)
6181-Y These double-insulated cables, suitable for fixed installation in dry or damp areas for both indoor and light industrial cabling, are also known as Meter Tail cables or "Smart Meter" cables.
Copper Conductor Cable Specifications
Type:
6181-Y
Standards:
BS 6004, IEC 60502-1
Cable Structure:
Conductor: Electrolytic Annealed Rigid or Stranded Copper Conductor (IEC 60228, VDE 0295, Class 2)
Insulation: PVC
Technical Data:
- Maximum Operating Temperature: -15°C / +70°C
- Maximum Short Circuit Temperature: 160°C
Rated Voltage;
- 6181-Y: 300/500V (IEC 60502-1: 0.6/1 kV)
- Test Voltage: 2.5 – 3.5 kV
- Flame Test: IEC 60332-1-2
Please contact our sales team to receive a price quote for 6181-Y PVC insulated flat flexible cables.
