ANTIGRON CABLE

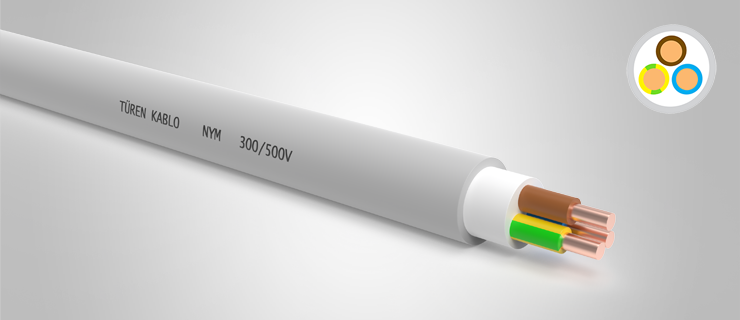

NYM Antigron Multi-Core Round Installation Cable (300/500 V)
NYM Antigron multi-core round installation cable is used both under and above plaster in all types of buildings and workplaces in damp areas where there is no mechanical stress.
Antigron Installation Cable Specifications
Type:
NYM, Antigron
Standards:
TS 9759, VDE 0250, IEC 60227, BS 6004
Cable Structure:
Conductor: Single or Multi-strand Electrolytic Annealed Copper Conductor (IEC 60228, VDE 0295, Class 1 or Class 2)
Insulation: PVC (TI1)
Filling: PVC
Sheath: PVC (TM1)
Technical Data:
- Maximum Operating Temperature: +70 ºC
- Maximum Short Circuit Temperature: +160 ºC (max 5 sec)
Rated Voltage;
- NYM: 300/500 V
- Test Voltage: 2 kV
- Flame Test: IEC 60332-1-2
Please contact our sales team to receive a price quote for NYM PVC insulated flat flexible cables.
