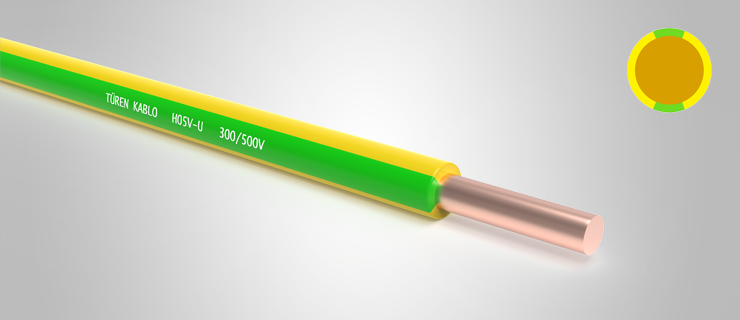

PVC INSULATED COPPER WIRE

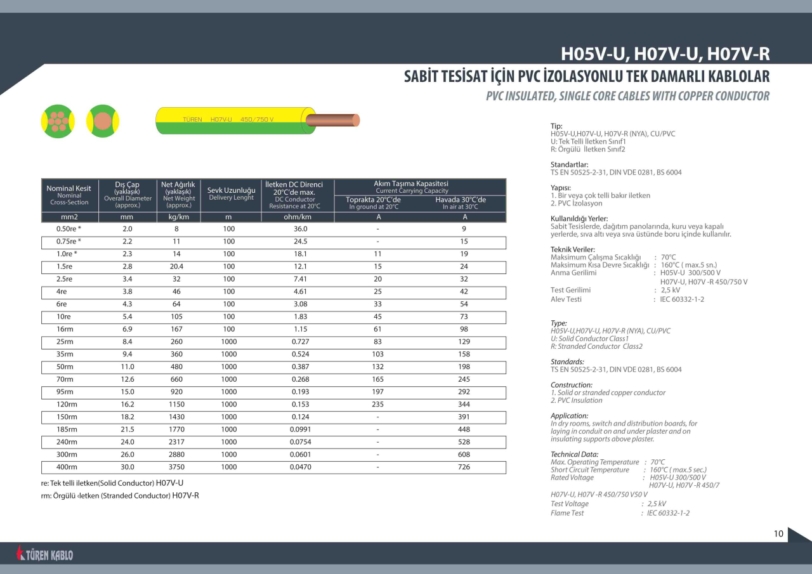

H05V-U PVC Insulated Harmonised Copper Installation Cable (300/500 V)
H05V-U harmonised installation cable is used in fixed installations, distribution panels, dry or closed spaces, on or under plaster, also can be laid in conduit.
Copper Wire Properties
Type:
H05V-U
Standards:
TS EN 50525-2-31, DIN VDE 0281, BS 6004
Cable Structure:
Conductor: Single or Multi-strand Electrolytic Annealed Copper Conductor (IEC 60228, VDE0295, Class 1)
Insulation: PVC (TI1)
Technical Data:
- Maximum Operating Temperature: +70 ºC
- Maximum Short Circuit Temperature: +160 ºC (max 5 sec)
Rated Voltage;
- H05V-U: 300/500 V
- Test Voltage: 2.5 kV
- Flame Test: IEC 60332-1-2
Please contact our sales team to receive a price quote for H05V-U PVC insulated harmonised installation cables.
