POWER CABLES

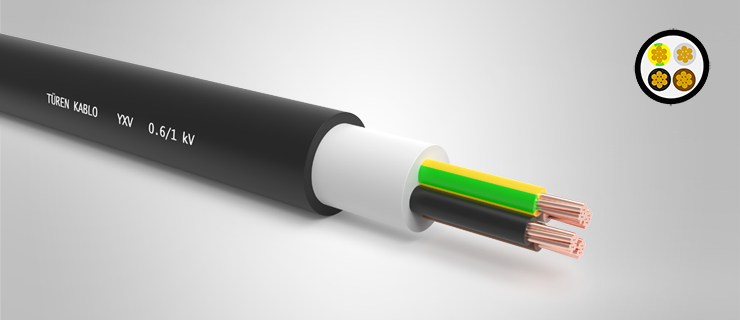

YXV XLPE Insulated Low Voltage Power Cable (0.6 / 1 kV)
YXV outdoor electrical cables, resistant to high operating temperatures (90°C) and sudden, short-term temperature increases, are used in indoor and outdoor environments with low mechanical stress, in switchgear and industrial facilities.
XLPE Power Cable Specifications
Type:
YXV
Standards:
IEC 60502-1
Cable Structure:
Conductor: Electrolytic Annealed Rigid or Stranded Copper Conductor (IEC 60228, VDE 0295, Class 1 or Class 2)
Insulation: XLPE cross-linked polyethylene
Filler: PVC
Sheath: PVC
Technical Data:
- Maximum Operating Temperature: +90°C
- Maximum Short Circuit Temperature: 250°C
Rated Voltage;
- YXV: 0.6 /1 kV
- Test Voltage: 3.5 kV
- Flame Test: IEC 60332-1-2
Please contact our sales team to receive a price quote for YXV PVC insulated outdoor electrical cables.
