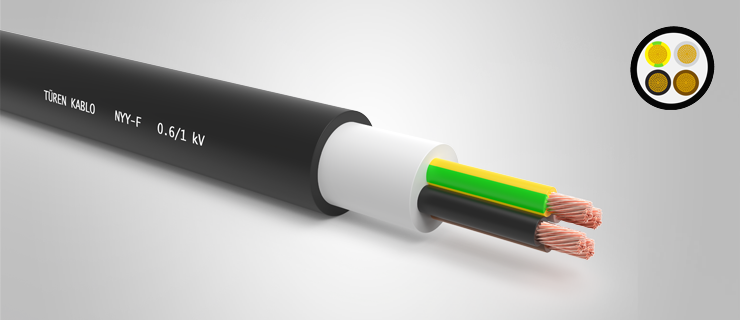

NYY-F Flexible Power Cable (0.6 / 1 kV)
NYY-F submersible motors are used in all types of civil engineering applications, fixed installations, in trenches, underground, and in electrical panels, as well as in situations where flexibility is required in mobile equipment.
Flexible Power Cable Specifications
Type:
NYY-F
Standards:
IEC 60502-1
Cable Structure:
Conductor: Fine Multi-strand Electrolytic Annealed Copper Conductor (IEC 60228, VDE 0295, Class 5)
Insulation: PVC
Technical Data:
- Maximum Operating Temperature: +70°C
- Maximum Short-Circuit Temperature: 160°C
Rated Voltage;
- NYY-F: 0.6 /1 kV
- Test Voltage: 3.5 kV
- Flame Test: IEC 60332-1-2
Please contact our sales team to receive a price quote for NYY-F PVC insulated flat flexible cables.
