POWER CABLES

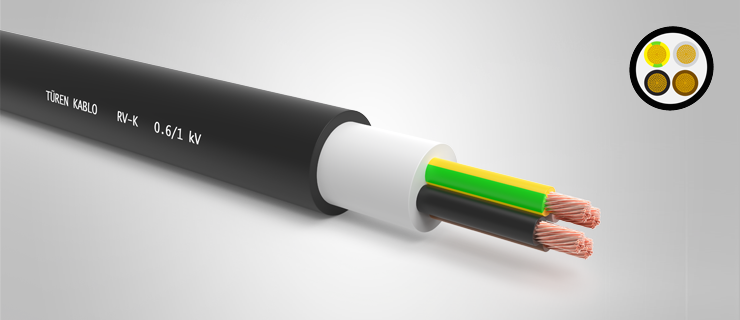

RV-K XLPE Insulated Flexible Power Cable (0.6 / 1 kV)
RV-K flexible power cables, resistant to high operating temperatures (90°C) and sudden, short-term temperature increases, are used indoors and outdoors, underground, and in cable ducts where mechanical stress is minimal.
Flexible Power Cable Specifications
Type:
RV-K
Standards:
UNE 21.123-2, IEC 60502-1
Cable Structure:
Conductor: Fine Multi-strand Electrolytic Annealed Copper Conductor (IEC 60228, VDE 0295, Class 5)
Insulation: XLPE cross-linked polyethylene
Sheath: PVC
Technical Data:
- Maximum Operating Temperature: +90°C
- Maximum Short Circuit Temperature: 250°C
Rated Voltage;
- RV-K: 0.6 /1 kV
- Test Voltage: 3.5 kV
- Flame Test: IEC 60332-1-2
Please contact our sales team to receive a price quote for RV-K PVC insulated flat flexible cables.
