POWER CABLES

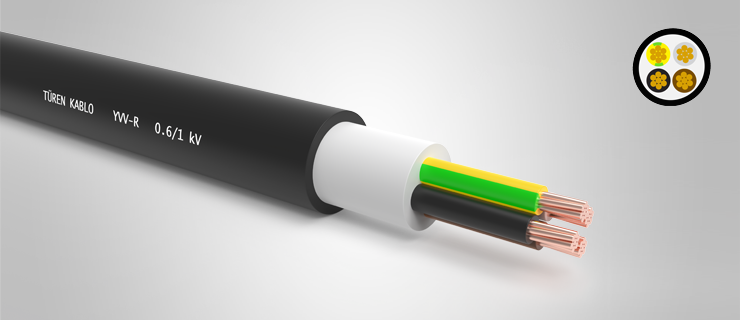

YVV-R Stranded Copper Power Cable (0.6 / 1 kV)
YVV-R outdoor electrical cable is used as a mains lighting and power cable in power plants, switchgear and industrial facilities, local energy distribution, underground and in outdoor cable trays where there are no excessive mechanical stresses.
Stranded Copper Power Cable Specifications
Type:
YVV-R
Standards:
IEC 60502-1
Cable Structure:
Conductor: Electrolytic Annealed Rigid or Stranded Copper Conductor (IEC 60228, VDE 0295, Class 1 or Class 2)
Insulation: PVC
Filler: PVC
Sheath: PVC
Technical Data:
- Maximum Operating Temperature: +70°C
- Maximum Short Circuit Temperature: 160°C
Rated Voltage;
- YVV-R: 0.6 /1 kV
- Test Voltage: 3.5 kV
- Flame Test: IEC 60332-1-2
Please contact our sales team to receive a price quote for YVV-R PVC insulated outdoor electrical cables.
