SPECIAL CABLES

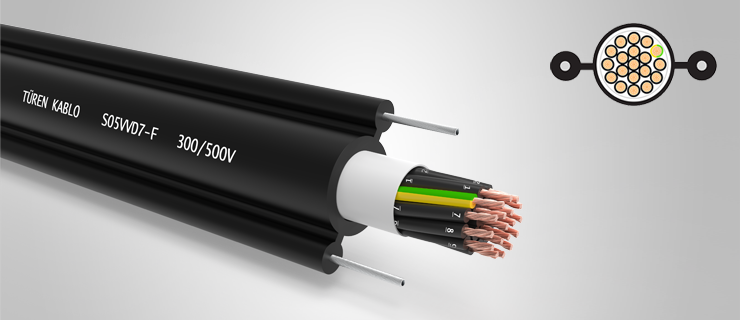

S05VVD7-F Steel Suspension Crane Control Cable (300/500 V)
The S05VVD7-F cable is used in overhead traveling cranes for connections between high-hanging rack systems and control buttons. Parallel steel support wires on both sides of the casing absorb the load, preventing damage to the cable.
Power Cable Specifications
Type:
S05VVD7-F
Standards:
IEC 60227
Cable Structure:
Conductor: Extra Fine (Class 6) Multi-Strand Electrolytic Annealed Copper Conductor (IEC 60228)
Insulation: PVC R2
Sheath: PVC TM2
Technical Data:
- Maximum Operating Temperature: +70°C
- Maximum Short Circuit Temperature: 150°C
Rated Voltage;
- S05VVD7-F: 300/500 V
- Test Voltage: 2000 V
- Flame Test: IEC 60332-1
Please contact our sales team to receive a price quote for S05VVD7-F PVC insulated flat flexible cables.
